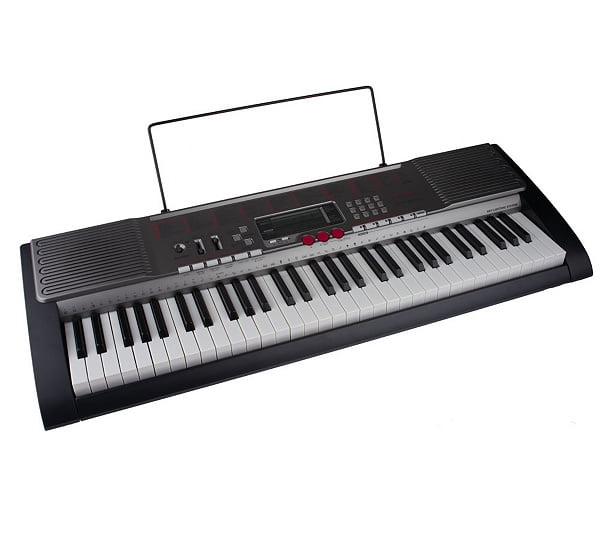

Casio LK-230 – Key Lighting Keyboards
Casio LK-230 – Key Lighting Keyboards

Casio LK-230 – Key Lighting Keyboards

The LK-230 is the perfect choice for creative musicians. It is equipped with the helpful Step-Up learning system which breaks down practice pieces into small learning units that can be easily mastered, just as in a traditional music lesson. It is featured with the new Voice Pad function that makes it really simple to play back voice samples and other sounds and effects using the pads. It includes the AHL sound source, boasting 48 notes, 150 rhythms, an extended automatic accompaniment feature with ON-bass chord with a large, easy-to-read display.

  • USB port & MIDI
  • Sampling function
  • 1Touch Preset (One hundred & fifty presets)
  • Voice Pad
  • Musical Information Function
  • Audio & Mic in jack
  • Four hundred top-quality tones
  • One hundred & fifty rhythms
Keyboard 61 piano-type keys
Touch Response 2 sensitivity levels, off
Sound Source AHL
Maximum Polyphony 48
Tones 400 built-in tones
Digital Effects Reverb: 10 types
Rhythms/Patterns 150 built-in rhythms
Auto Accompaniment
  • Modes: CASIO Chord, Fingered 1, Fingered 2 (6th off), Fingered 3 (on bass), Full Range Chord
  • Controllers: Start/Stop, Intro, Normal/Fill-in, Variation/Fill-in, Synchro/Ending
Built-in Songs 110 (Song Bank)
Lesson Function
  • Step up lesson
  • Scoring system
  • Voice fingering guide

(Lesson part: right hand, left hand, both hands)
Metronome Beats: 0, 2, 3, 4, 5, 6 (Tempo range: quarter note = 30 to 255)
Sampling Function
  • Maximum total sampling time: 1-second
  • Sampling sound input: Mic in jack
Other Functions
  • Music challenge
  • Voice pads: 5 pads x 4 sets (3 sets of sampled sounds, 1 set of percussion only)
Key Transpose 25 steps (-12 to +12 semitones)
Tuning Control A4 = approximatery 440 Hz ± 100 cents
Pedals Standard jack (sustain, soft, sostenuto, start/stop)
Display Screen LCD
MIDI
  • GM Compatibility: Level1
  • Terminals: USB
Speakers 10cm x 2
Amp Output 2W + 2W
Input/Output Terminals
  • Headphones (standard stereo jack)
  • Sustain/assignable
  • Audio in
  • Mic in
  • USB: type B
  • External power (9V DC)

* USB cable (A-B type) required to use USB terminal for computer connection.
Power Requirements Batteries: AA-sizex6/Optional AC adaptor: AD-5
Included Accessories Microphone, song book, music stand
Dimensions (W x D x H) 949 x 357 x 118 mm
* Excluding music stand, and other projections
Weight 4.2 kg (Excluding batteries)
